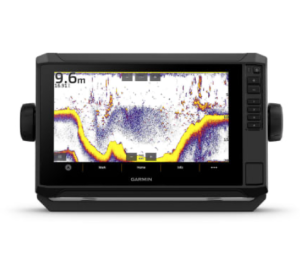

Garmin Echomap UHD2 92SV no Transducer

The sunlight-readable 9” touchscreen chartplotter features a quick-release bail mount, and the transducer bundle adds Ultra High-Definition scanning sonar and CHIRP traditional sonar.

SONAR SUPPORT

This chartplotter supports a variety of Garmin transducers (sold separately), including the Panoptix LiveScope™ scanning sonar system, which lets you see all around your boat in real time.

OPTIONAL TRANSDUCER BUNDLE

Select the transducer bundle to add a GT54 transducer for Ultra High-Definition ClearVü and SideVü scanning sonars, which show you crystal-clear images below and around your boat. Plus, you get Garmin high wide CHIRP traditional sonar for remarkable target separation.

OPTIONAL CHARTS AND MAPS

Experience unparalleled coverage and detail with support for optional BlueChart® g3 Vision coastal charts featuring integrated Garmin and Navionics® content.

QUICKDRAW CONTOURS

Create personalised fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the QuickDraw™ Community on Garmin Connect™.

General

PHYSICAL DIMENSIONS 28.2 x 16.4 x 6.0 cm
DISPLAY SIZE 19.9 x 11.3 cm; 22.9 cm (9.0") diagonal
DISPLAY RESOLUTION 400 x 800 pixels
DISPLAY TYPE WVGA display
WEIGHT 1.0 kg
WATER RATING IPX7
POWER CONSUMPTION 18 W
ANTENNA Internal or external over NMEA 2000
MOUNTING OPTIONS Bail or flush
RECEIVER 5 Hz
GARMIN MARINE NETWORK™ PORTS None
TRANSMIT POWER 500 W (RMS) / 4,000 W (peak to peak)
Maps & Memory

PRELOADED MAPS Worldwide basemap
ACCEPTS DATA CARDS 1 microSD™ card; 32 GB maximum size
WAYPOINTS 5,000
TRACK LOG 50,000 points; 50 saved tracks
ROUTES 100
Outdoor Recreation

TIDE TABLES
Chartplotter features

GARMIN SONAR COMPATIBLE
SUPPORTS AIS (TRACKS TARGET SHIPS POSITION)
SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO)
GCV™ BLACK BOX SONAR SUPPORT
ACTIVECAPTAIN COMPATIBLE Yes
SAILING FEATURES
Sonar Features & Specifications

DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE
DUAL-BEAM (77/200 KHZ) SONAR CAPABLE
CHIRP SONAR TECHNOLOGY Yes (Built-in)
CLEARVÜ Yes with CHIRP (built-in)
SIDEVÜ Yes with CHIRP (built-in)
MAXIMUM DEPTH
700 metres @ 77 kHz, freshwater

335 metres @ 77 kHz, saltwater

(depth capacity is dependent on water bottom type and other water conditions)

BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP)
WATER TEMPERATURE LOG AND GRAPH
SONAR RECORDING
SONAR HISTORY REWIND
Connections

NMEA 2000® COMPATIBLE
TRANSDUCER PIN NUMBERS 12
NMEA 0183 INPUT PORTS 1
NMEA 0183 OUTPUT PORTS 1
VIDEO INPUT PORTS None
VIDEO OUTPUT PORTS None
WIRELESS CONNECTIVITY Yes
